Stainless steel flanged butterfly valve

Flange is also called flange flange disk or flange flange is a part connected with each other between pipesfor connection between pipe ends, it is also useful to use flanges on the inlet and outlet of equipment forconnecting two equipment, such as reducer flanges.

Keywords:

Category:

E-Mail:

Tel/Wechat/WhatsApp：

Details

Product introduction

Product classification: butterfly valve

Connection: Flange

Drive: Manual

Body Material: Carbon Steel 304/316

Temperature: type-20 ℃ ~ + 80 ℃

Medium temperature:-20 ℃ ~ + 150 ℃

Flange Size:DN50-600

Technical parameters

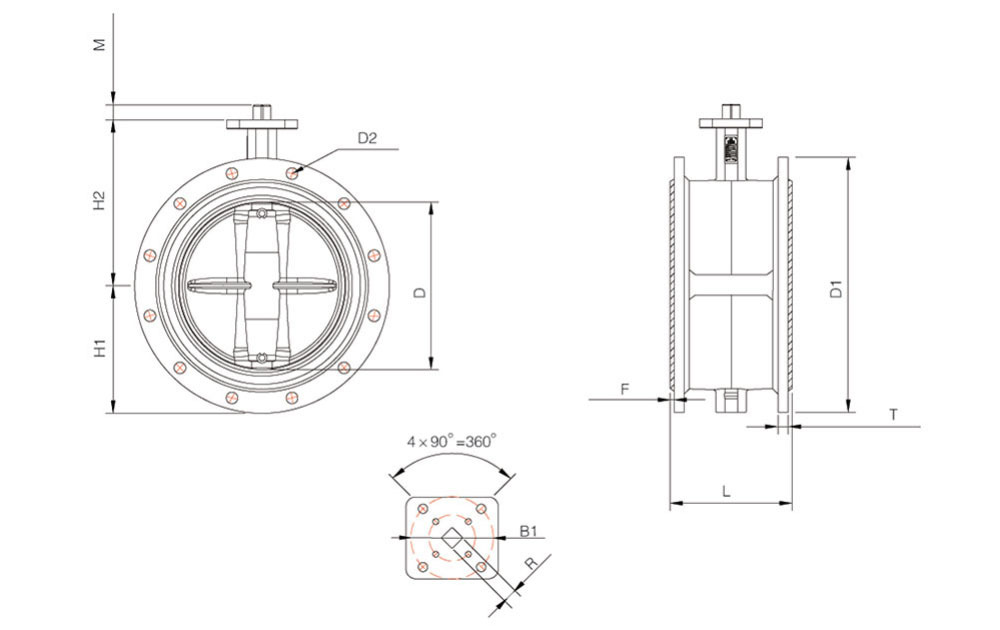

SIZE		L	D	D1	D2	T	F	H1	H2	M	R	B1	ISO5211
DN50	2"	108	39	164	125	20	2	62	130	12.5	11	50	F05
DN65	2-1/2"	112	55	181	145	20	2	73	145	15	11	50	F05
DN80	3"	114	69	195	160	20	2	85	155	15	11	50	F05
DN100	4"	127	91	215	180	22	2	102	170	16	14	70	F07
DN125	5"	140	115	245	210	22	2	116	190	19	14	70	F07
DN150	6"	140	140	280	240	24	2	130	210	19	14	70	F07
DN200	8"	152	186	337	295	24	2	160	243	22	17	102	F10
DN250	10"	165	239	395	355	26	2	193	282	22	19	102	F10
DN300	12"	178	288	445	410	28	2	230	310	24	22	125	F12
DN350	14"	190	325	505	470	30	2	256	345	29	27	125	F12
DN400	16"	216	375	565	525	32	2	283	377	29	27	140	F14
DN450	18"	222	423	615	585	40	2	317	375	38	36	140	F14
DN500	20"	229	473	670	650	44	2	355	430	38	36	165	F16
DN600	24"	267	560	780	770	54	2	410	500	48	46	254	F25
