Product detail display

High miniaturization, compact structure, small floor area and high operation reliability.

Overview of TD Pipeline Circulating Pump

Model TD Single Stage Pipeline Centrifugal Pump Equipped with Motor and Mechanical Seal Compared with similar products, the structure of such products is less susceptible to impurities in pumped liquids.
The product is designed as a top-pull-out detachable form, which can maintain the pump without affecting the pipeline system.

Application scope of TD pipeline circulating pump

The product is suitable for use in clean, thin, non-corrosive, non-explosive, flammable liquids that do not contain any solid particles and fibers that may cause mechanical or chemical damage to the pump Specific requirements and applications for liquids are as follows; However, when used in liquid or density, it will cause the decline of pump characteristic curve and energy consumption

Liquid temperature:-15 ℃ ~ 110 ℃

System * pressure: PN12 bar for conventional type; The special type is PN16 bar

When TD products are used for conveying water, they can be used for domestic water, industrial water, cooling system water and cold and hot water of district heating system TD products can be used in the following locations:

1.Main circulating pump

2.Pump in mixing loop

3.Boiler mixed flow pump

4.Gas refrigerator pump

5.Partial flow filter pump

6.Pump for constant pressure system

7.Domestic hot water circulation

TD products are used in industry For example, in chemical, pharmaceutical and food processing industries, Can be used for:

1.Transportation of raw materials

2.System supercharging

3.Hybrid loop circulating pump

TD Circulation Pump represents a pinnacle of innovation in fluid dynamics, designed to optimize efficiency and enhance performance across various industrial and residential applications. Engineered with precision and reliability in mind, TD Circulation Pump has garnered acclaim for its robust design and cutting-edge technology.
TD Circulation Pump is engineered using state-of-the-art technology, ensuring optimal fluid dynamics and energy efficiency. Its sleek design incorporates high-quality materials that enhance durability and minimize maintenance requirements, making it a preferred choice for both industrial and residential use.
With its versatile design, TD Circulation Pump finds application in a wide array of sectors, including HVAC systems, industrial processes, and residential heating. Its ability to handle diverse fluid types and temperatures makes it indispensable in maintaining consistent performance across varied environments.
One of the hallmark features of TD Circulation Pump is its exceptional energy efficiency. Through innovative engineering and intelligent control systems, the pump reduces energy consumption while maximizing output, thereby contributing to sustainability goals and operational cost savings.

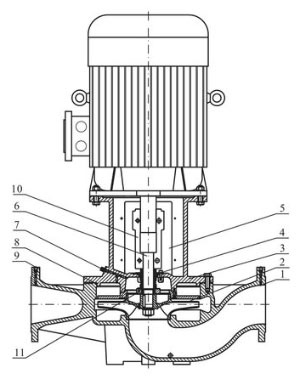

TD Pipeline Circulating Pump Structure Drawing
