Manual pinch butterfly valve
Flange is also called flange flange disk or flange flange is a part connected with each other between pipesfor connection between pipe ends, it is also useful to use flanges on the inlet and outlet of equipment forconnecting two equipment, such as reducer flanges.
Keywords:
Category:
Details
Product introduction
Product classification: butterfly valve
Connection: Opposite clip
Drive: Manual
Body Material: Carbon Steel 304/316
Temperature: type-20 ℃ ~ + 80 ℃
Medium temperature:-20 ℃ ~ + 150 ℃

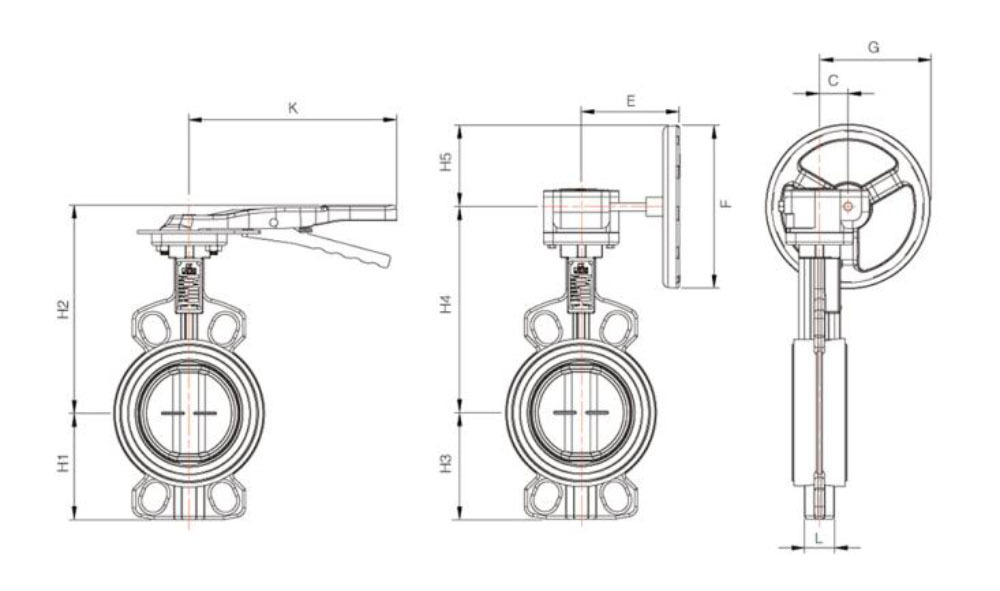

Handle & Turbine Size
Technical parameters
| SIZE | L | Handle | Turbine | |||||||||
| K | H1 | H2 | H3 | H4 | H5 | E | F | G | C | |||
| DN40 | 1-1/2" | 33 | 210 | 60 | 195 | 60 | 157 | 75 | 155 | 150 | 116 | 41 |
| DN50 | 2" | 43 | 210 | 65 | 218 | 65 | 180 | 75 | 155 | 150 | 116 | 41 |
| DN65 | 2-1/2" | 46 | 210 | 71 | 230 | 71 | 192 | 75 | 155 | 150 | 116 | 41 |
| DN80 | 3" | 46 | 210 | 77 | 237 | 77 | 199 | 75 | 155 | 150 | 116 | 41 |
| DN100 | 4" | 52 | 210 | 107 | 256 | 107 | 218 | 75 | 155 | 150 | 116 | 41 |
| DN125 | 5" | 56 | 210 | 122 | 272 | 122 | 234 | 75 | 155 | 150 | 116 | 41 |
| DN150 | 6" | 56 | 210 | 150 | 285 | 150 | 247 | 75 | 155 | 150 | 116 | 41 |
| DN200 | 8" | 60 | - | - | - | 165 | 281 | 100 | 195 | 200 | 163 | 63 |
| DN250 | 10" | 68 | - | - | - | 201 | 327 | 100 | 195 | 200 | 163 | 63 |
| DN300 | 12" | 78 | - | - | - | 234 | 350 | 100 | 195 | 200 | 163 | 63 |
| DN350 | 14" | 78 | - | - | - | 301 | 370 | 155 | 255 | 310 | 236 | 81 |
| DN400 | 16" | 102 | - | - | - | 333 | 402 | 155 | 255 | 310 | 236 | 81 |
| DN450 | 18" | 114 | - | - | - | 358 | 445 | 200 | 340 | 400 | 281 | 81 |
| DN500 | 20" | 127 | - | - | - | 392 | 479 | 200 | 340 | 400 | 281 | 81 |
| DN600 | 24" | 154 | - | - | - | 454 | 548 | 200 | 370 | 400 | 323 | 123 |
| DN700 | 28" | 165 | - | - | - | 508 | 619 | 200 | 370 | 400 | 360 | 160 |
| DN800 | 32" | 190 | - | - | - | 592 | 775 | 200 | 370 | 400 | 360 | 160 |
| DN900 | 36" | 203 | - | - | - | 632 | 805 | 200 | 370 | 400 | 360 | 160 |
| DN950 | 38" | 216 | - | - | - | 682 | 874 | 200 | 370 | 400 | 360 | 160 |
| DN1000 | 40" | 216 | - | - | - | 698 | 945 | 300 | 471 | 600 | 497 | 197 |
| DN1050 | 42" | 216 | - | - | - | 761 | 1009 | 300 | 471 | 600 | 497 | 197 |
| DN1100 | 44" | 216 | - | - | - | 768.1 | 1010 | 300 | 471 | 600 | 497 | 197 |
| DN1200 | 48" | 254 | - | - | - | 813.6 | 1066 | 300 | 471 | 600 | 497 | 197 |
Product details
1.Stainless steel material
Adopt stainless steel with good hardness, which is not easy to damage and use more safely.
2.Wedge design
Clever wedge design makes the valve close tighter and tighter. Automatic sealing function has compensatory zero leakage between seals.
3.PTFE seal
Strong corrosion resistance (most acids, alkalis and salts are suitable) and temperature resistance (-20-150).
Product characteristics
1.Good adjustment performance
The flow characteristics tend to be straight, and the adjustment performance is good
2.Simple structure
Simple and compact structure, 90 operation and quick opening and closing
3.The operating torque is small
Labor-saving, light and convenient
